There are several basic kinds of nodes. Each of them is derived originally from the BMediaNode class. Any nodes that you might implement will be derived, in turn, from one or more of these node types. The node kind indicates which of these types a node implements.

Time Sources

A time source node broadcasts timing information that can be used by other nodes. All nodes are slaved to a time source, which provides synchronization among all nodes slaved to that time source. Typically, applications won't need to worry about this, because any node created through the BMediaRoster class are automatically slaved to the system (default) time source.

Note

A node can be derived from any of these types (BBufferProducer, BBufferConsumer, BTimeSource, and BControllable), in any combination, as appropriate.

The node_kind type is used to identify which of these interfaces a node implements; this lets the Media Kit know which APIs your node supports. These flags include B_BUFFER_PRODUCER, B_BUFFER_CONSUMER, B_TIME_SOURCE, and B_FILE_INTERFACE.

There are other flags available in the node kind; these indicate special node functions supported by the node. These are B_PHYSICAL_INPUT, which indicates that the node is a physical input device, B_PHYSICAL_OUTPUT, which indicates that the device is a physical output device, and B_SYSTEM_MIXER, which indicates that the node is the system mixer.

The primary purpose to these flags is to help user interfaces determine how to draw the interface for these nodes; they get special icons in the Media preference application, for example.

For example, if you're creating a sound card node that plays audio to stereo speakers, you would need to derive from BBufferConsumer (in order to receive audio buffers). You could also derive from BTimeSource if your sound card has the ability to provide timing information to others. And if you want the user to be able to control the volume, balance, and so forth, you would also derive from BControllable.

If your sound card also provides a digitizer input, you would actually create a second node to support that feature. It would inherit from BBufferProducer (so it can generate audio buffers for other nodes to use). It might also derive from BTimeSource and BControllable.

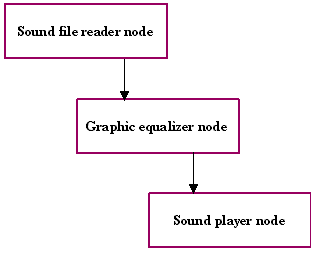

But not all nodes necessarily represent a physical hardware device. If you want to create a filter—for example, a noise-reduction filter—you can create a node to do this too. Simply derive from both BBufferConsumer (so you can receive buffers) and BBufferProducer (so you can send back out the altered buffers).

The media_format structure describing B_MEDIA_RAW_AUDIO media contains the following information:

The media_format structure describing B_MEDIA_RAW_VIDEO media contains the following information:

A format wildcard indicates unspecified parts of the format. This is used during negotiation so a node or application can say "I don't care about this partifular part of the format; I'm flexible." For example, if your application is negotiating with a video node, and you can handle any bit depth of video, you would specify a wildcard in the color space field of the format.

Each format type has one wildcard object.

For example, if you're preparing to negotiate with an audio node, and don't care about the frame rate, the following code will set up the media_format structure for negotiation:

media_format format;
media_raw_audio_format wc;

wc = media_raw_audio_format::wildcard;

format.type = B_MEDIA_RAW_AUDIO;
format.u.raw_audio.frame_rate = wc.frame_rate;

A sample is a single value that defines the amplitude of an audio waveform at a given instant in time. This value can be represented in a number of ways: as a one-byte integer, as a two-byte integer, as a floating-point value, or in other ways. The native audio sample format in BeOS is floating-point, where a value of 0.0 represents a wave point with no amplitude. Positive values indicate a sample whose amplitude is above the zero point, and negative values represent samples below the zero point.

A frame is the set of samples that describes a sound at a given instant in time. If the audio contains multiple channels, a frame contains multiple samples, one for each channel. A monaural audio stream contains one sample per frame, while a stereo audio stream contains two samples per frame. Surround sound formats contain even more samples per frame of audio.

A buffer is a more efficient way of sending audio from one node to another. Instead of beaming around thousands of individual frames, frames are grouped into buffers that are then transferred en masse along the chain of nodes. This improves throughput and reduces overhead.

See "media_raw_audio_format" for more information about describing audio formats.

Video can be represented either as non-interlaced or interlaced data. Both NTSC video (the standard format for television video in the United States) and PAL video (the standard in many other countries) are interlaced.

Typically, a video stream will have either one or two fields per frame. If the video isn't interlaced, there's only one field, which contains all the scan lines in the video stream. If the video is interlaced, there are usually two fields per frame (it might be more, but two is most common). One field contains the even lines of the frame, the other contains the odd lines.

Video buffers in the BeOS Media Kit always contain either a complete frame or a complete field; buffers never contain partial frames or fields.

See "media_raw_video_format" for more information about describing the format of video data.

This chapter doesn't pretend to be a tutorial on the intricacies of audio and video data formats. There are plenty of good reference books on these subjects. Here's a list of books our engineers suggest:

• The Art of Digital Audio by John Watkinson (ISBN 0240513207)

• Compression in Audio and Video by John Watkinson (ISBN 0240513940)

• Digital Audio Signal Processing by Udo Zolzer (ISBN 0471972266)

• Introduction to Signal Processing by Sophocles Orphanidis (ISBN )

• Principles of Digital Audio by Ken C. Pohlmann (ISBN 0070504695)

• A Programmer's Guide to Sound by Tim Kientzle (ISBN 0201419726)

• Video Demystified by Keith Jack (ISBN 18780723X)

Each media node maintains a control port. The Media Kit interacts with the node by sending messages to the node's control port.

Media time is time relative to a particular media file, and is represented in terms of microseconds since the beginning of the file. Seek operations are performed using media time.

Real time is the time reported by the system clock, and is represented in terms of microseconds since the computer was booted. It's used in conjunction with system calls, such as snooze(), read_port_etc(), and so forth.

Performance time is the time at which events should occur at the final output. It's reported by a time source node, which establishes the relationship between real time and performance time.

Usually a single time source is the master clock for all the nodes in a node chain.

There are two reasons why performance time and real time may differ: if the master clock isn't the system time, there may be drift over time. Also, latency caused by the time it takes for data to pass from one node to another can cause drift as well.

Let's consider a case in which three nodes are connected. The first node has a processing latency of 3 microseconds, the second has a processing latency of 2 microseconds, and the last has a processing latency of 1 microsecond.

Note

This example uses the term "microseconds" because the Media Kit measures time in microseconds; however, the latencies used in this example may not be indicative of a real system.

In addition, 2 microseconds is required for buffers to pass from one node to the next. The total latency of this chain of nodes, then, is 3 + 2 + 2 + 2 + 1 = 10 microseconds.

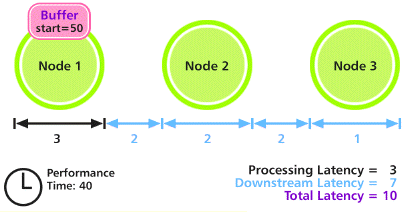

A buffer is scheduled to be played at a performance time of 50 microseconds. In order to get this buffer to the last node in time to be played at the right time, it needs to begin being processed at 40 microseconds. We see this in the diagram below.

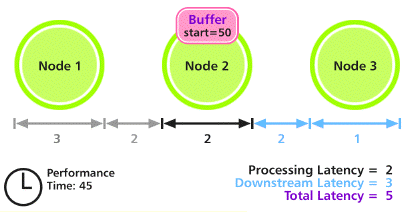

After the buffer has been processed by Node 1 and has been passed along to Node 2, 5 microseconds have passed. Node 2 will take 2 microseconds to process the buffer. This gets us to a performance time of 45 microseconds:

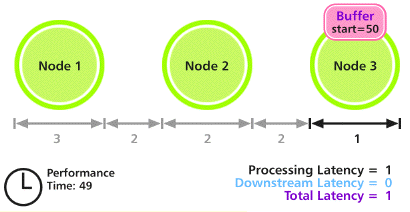

Node 2 processes the buffer, and passes it along to Node 3. This takes a total of 4 microseconds (2 microseconds of processing time plus 2 microseconds to be sent to Node 3). We arrive at the performance time of 49 microseconds:

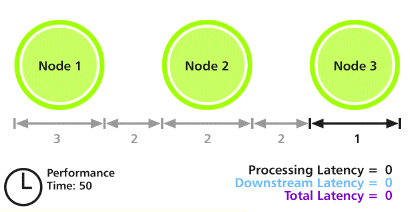

Finally, Node 3 processes the buffer; this requires 1 microsecond of processing time. At this point, the performance time of 50 microseconds has been reached, and the buffer has been performed on schedule.

There are several standard nodes, which the user configures using the Media preference application, plus the system mixer. The BMediaRoster class provides convenience routines to quickly get references to these nodes, such as GetAudioMixer() and GetVideoOutput(). See the BMediaRoster class for details.

If you need some other node, you can browse through the available nodes to find the one best-suited for your needs. Nodes are created from dormant nodes, which live inside media add-ons. Each dormant node is a reference to a node flavor, a structure that describes the nodes the dormant node can create.

Once you've identified the best node for your purposes, you negotiate and establish a connection to the node. This is discussed in the BMediaRoster overview.

Once your nodes are created and connected to each other, you can control them by using the BMediaNode functions Preroll(), Seek(), Start(), and Stop(). These let you move to specific points in the media file and start and stop playback or recording.

You can also set the nodes' time sources, run modes, and play rates.

BControllable nodes can present a user interface representing the aspects of itself that the user can configure. Each of these configurable aspects are called a parameter. The BMediaRoster provides functions that let you create a user interface for a node's parameters. See BMediaRoster::StartControlPanel() for the easiest way to do this.

To calculate the presentation time at which a buffer should be performed, you should keep track of how many frames have been played, then multiply that value by 1000000LL/sample_rate (and, if your calculation is being done using floating-point math, you should floor() the result). You can then apply whatever offset you want to Seek() to.

buf->Header()->size_used = your_buf_frames * your_frame_size;
buf->Header()->start_time =
your_total_frames*1000000LL/your_format.frame_rate;
your_total_frames += your_buf_frames;

You shouldn't compute the start time by adding the previous buffer's duration to its start time; the accumulation of rounding errors over time will cause dropped samples about three times per second if you do.

Producers that produce buffers intended for output need to stamp each buffer it creates with a startTime, which indicates the performance time at which the buffer should be played. If the producer is playing media from a file, or synchronizing sound, this is the time at which the media should become analog.

In order to compute this startTime properly, the producer must prepare the buffers in advance, by the amount of time reported by BBufferProducer::FindLatencyFor(). The producer also needs to respond to the BBufferProducer::LateNoticeReceived() hook function by at least updating the time stamps it's putting on the buffers it's sending out, so they'll be played by the downstream nodes, which should be checking those times to play them at the correct time (and may be dropping buffers if they're late). If this isn't done, things will tend to get further and further behind.

Note

In general, it's best to try to produce buffers as late as possible without actually causing them to arrive at their destination late (ie, they should be sent at or before the time presentationTime - downstreamLatency). This will ensure the best overall performance by reducing the number of buffers that are pending (especially if the user starts playing with time such that your node gets seeked or stopped). Also, if you're producing buffers that have a real-world connection, such as to a video display, producing them too early might cause them to be displayed early.

If a producer is producing buffers that are being generated by a physical input (such as a microphone jack, for example) handle things somewhat differently. They stamp the generated buffers with the performance time at which they were captured (this should be the time at which the first sample in the buffer was taken). This means that when these buffers are transmitted downstream, they'll always be "late" in the eyes of any node they arrive at.

This also means you can't easily hook a physical input to a physical output, because buffers will always arrive at the output later than the timestamped value. You need to insert another node between the two to adjust the time stamps appropriately so they won't be "late" anymore.

Note

You can call BMediaRoster::SetProducerRunModeDelay() on a physical input producer to make it appropriately retimestamp buffers it generates automatically when recording.

Additionally, nodes that record data (such as file-writing nodes), in the B_RECORDING run mode, shouldn't care about buffers that arrive late; this lets data be recorded without concern for this issue.

If the consumer is the device that recognizes the media (ie, it plays the audio or video contained in the buffers it receives), it needs to report the correct latency back to the producer for the time it takes buffers to reach the analog world (ie, the amount of time it takes to present the data in the buffer to the user, whether it's audio or video). Buffers that are received shouldn't be played until the startTime stamped on the buffers arrives. If buffers arrive late, the consumer should send a late notice to the producer, so it can make the necessary adjustments, and not pass the buffer along at all; be sure to Recycle() the buffers so they can be reused.

A consumer/producer (filter) must report the correct latency for the time a buffer takes to pass through the filter from the time it's received to the time it's retransmitted, plus the downstream latency. It shouldn't change the time stamp, unless this explicitly part of the filter's purpose. The filter should also handle late packets as described under Producers and Consumers above.

The application that starts the nodes and the time source to which they're slaved needs to provide them with the correct starting times. For example, if several nodes have been connected, they've all been slaved to an appropriate time source, and you want to start them all up, you need to take the following steps:

bigtime_t latency;
Roster->GetLatencyFor(node1, &latency);

Roster->PrerollNode(node1);
Roster->PrerollNode(node2);
Roster->PrerollNode(node3);
Roster->StartNode(node1, 0);
Roster->StartNode(node2, 0);
Roster->StartNode(node3, 0);

bigtime_t now = system_time();
Roster->SeekNode(timesourceNode, -latency, now + 10000);
Roster->StartNode(timesourceNode, now + 10000);

The extra 10,000 microseconds is added in case the code gets preempted while preparing to start the timesourceNode; this gives us a little fudge factor so we don't start out behind.

Nodes that run in offline mode are a special case in the timing world.

Producers

Just send buffers in sequence in B_OFFLINE mode. The recommended behavior is to send the first buffer, then wait for an AdditionalBufferRequested() call before sending the next buffer. If this request doesn't arrive within a reasonable amount of time (a second or so, depending on your application), your node should accept that it's working with a not-so-bright consumer and start sending buffers at your convenience.

Warning

Don't call the time source from your producer in B_OFFLINE mode.

If a producer has ever received an AdditionalBufferRequested() call, it should assume that the consumer knows what it's doing and should only send buffers on request.
