The Deskbar Menu
The Tray
The list of running programs


The Deskbar is the little panel that by default is located in the upper right corner of the screen. It's Haiku's version of Windows' taskbar with its Start button. It contains the Deskbar menu from where you can start applications and preferences, a tray with a clock and other tools below that and a list of currently running programs at the bottom.

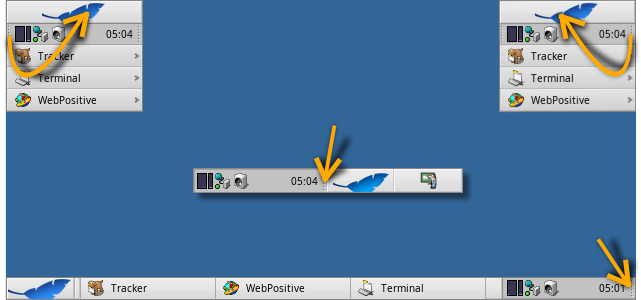

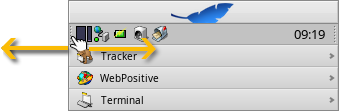

You can move the Deskbar to any corner or as a bar along the upper or lower border of the screen by gripping the knobbly area on one side of the tray and drag&drop it into the new position. You can also fold it into a more compact layout by drag&dropping the knobbly area onto the Deskbar menu.

index The Deskbar Menu

A menu opens when you click on the Deskbar's top:


indexDeskbar Preferences

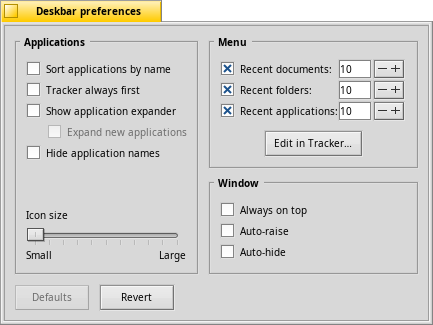

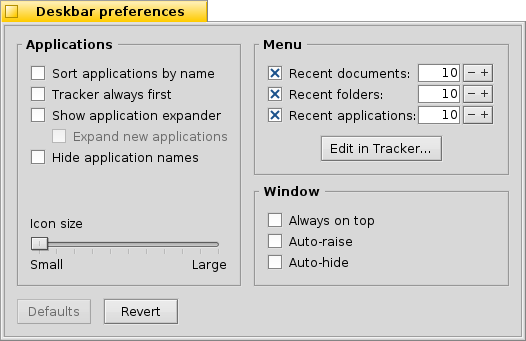

The Deskbar preference panel is devided into three sections.


The following settings don't apply to your installed applications, but to the behavior and visuals of the list of running applications.

Sort running applications Sorts the list of running programs alphabetically.
Tracker always first Even if you sort alphabetically, the Tracker entry always stays first in the list.
Show application expander Provides a small widget to show/hide all windows of a program directly under its entry in the Deskbar.
Expand new applications Newly launched programs have their windows automatically expanded under their entry in the Deskbar.
Hide application names Removes the text labels of running applications.
Icon size Adjusts the icon size of running applications.


While the first couple of menu items of the Deskbar are fixed, you can customized the ones below Shutdown....
Here you can set the number of recent documents, folders and applications that are shown in their menu in the Deskbar, or if you want to see them at all.
The button Edit menu... opens the folder ~/config/settings/deskbar/menu/. In it you'll find the files and folders that appear in the Deskbar, by default these are Applications, Demos, Deskbar applets, and Preferences.
You can delete or add entries like links to applications, documents or even queries by simply copying/deleting them to/from this folder.

Programs installed from a package automatically put an entry into the Deskbar. Depending on the number of packages you have installed, this can become a bit crowded. If you prefer to have total control, and only want to see applications you link there yourself (possibly in categorizing sub-folders), here's how to do it:
You create a link of the menu folder in ~/config/settings/deskbar/ and rename to menu_entries. From Terminal that is achieved with:

ln -s ~/config/settings/deskbar/menu ~/config/settings/deskbar/menu_entries


Finally, the preferences for the Deskbar window.

Always on top The Deskbar always stays above all other windows.
Auto-raise The Deskbar pops to the front if the mouse pointer touches it.
Auto-hide The Deskbar is reduced to only a few pixels and only pops up if the mouse pointer touches them.

index The Tray


Among other things, the tray is housing the clock. Hover the mouse over it to display the date in a tooltip. Left-click it to show a calendar. Right-click it to hide/show the clock or launch the Time preferences to set it.

Any program can install an icon in the tray to provide an interface to the user. The email system, for instance, shows a different symbol when there's unread mail and offers a context menu to e.g. create or check for new mail. ProcessController is another example that uses its icon in the tray to provide information (CPU/memory usage) and to offer a context menu.

index The list of running programs


You can change to a specific running application by clicking on its entry in the Deskbar and choosing (one of) its windows, from the submenu. By right-clicking you can minimize or close a window or the entire application.

If you activated Expanders in the Deskbar settings, you can expand/collapse the list of windows directly under an application's entry.

In front of every application's windows is a symbol providing info on its state. A bright symbol means a window is visible, a dark one that it's minimized. Three lines in front of a symbol shows that it's not on the current workspace.
