debugger-icon_64.pngDebugger

Deskbar:Applications
Location:/boot/system/apps/Debugger
Settings:~/config/settings/Debugger settings
~/config/settings/Debugger/

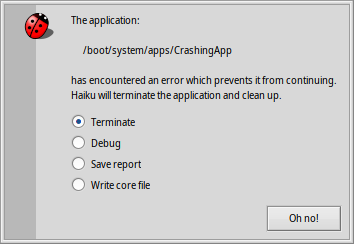

The Debugger is an application the common user hasn't much use for. It's targeted at developers to investigate bugs in programs. Sometimes those bugs result in crashes and that is when even end users come into contact with the Debugger. When a program crashes, you're confronted with this alert :


It offers four options to react to the crash:

The default action when a crash happens can be configured with a text file ~/config/settings/system/debug_server/settings.
The file takes on a driver_settings style format as follows:

default_action user

executable_actions {
	app1 log
	/path/app2* debug
}

Valid values for a default_action are:

userPrompt the user for action.
killSilently terminate the crashing team.
debugAttach the debugger to the crashing team.
log / reportSave a crash report and terminate the team.
coreSave a (possibly very large) core file and terminate the team.

If no default_action is specified, "user" is assumed.

The executable_actions subsection contains individual overrides of the default. These take the form above, where the individual lines can be only a team name, or a path, with wildcards.

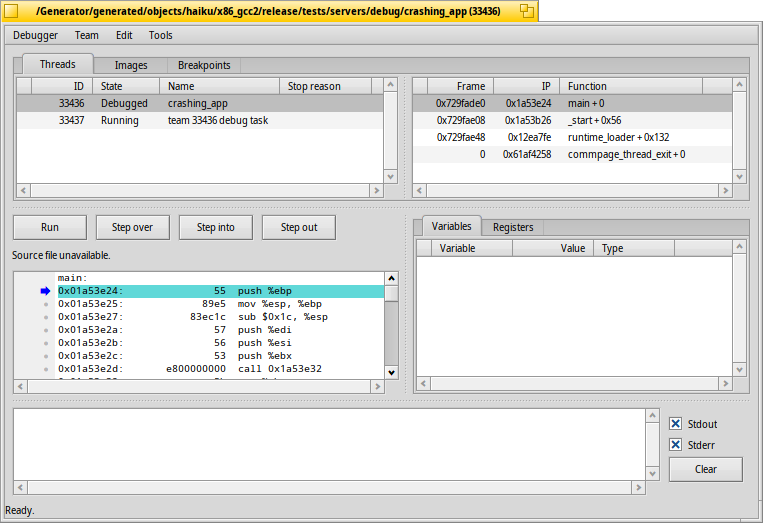

Describing the usage of the actual Debugger is out of scope for this guide that is addressing the needs of the common user of Haiku. For completeness sake, here's the window that'll come up if you choose the Debug option in the above alert:


As you'll quickly see when you start poking around a bit, the Debugger is one of the most complex and sophisticated applications for Haiku. If you're a developer and are used to graphical debuggers on other platforms, many features will be familiar to you.

Below are a few links that may shed some light on the intricacies of Haiku's Debugger. If you have a specific question, you may want to consider posting it on the development mailing list. If you find more useful resources, please file a bugreport with that info.

Debugger Reference ManualThis is the most in-depth source on how to work with the Debugger.
Blogposts There are a few articles on the Debugger, mostly by Rene Gollent after implementing a new feature.
BeGeistert 026 video A video from the BeGeistert meeting in 2012, in which Ingo Weinhold demonstrates the state of the Debugger back then and shows other interesting tools like the profiler to hunt down bottlenecks.
