DriveSetup is a tool to create, delete and initialize partitions. At this time it can't resize or move existing partitions, so that you'll either need an unpartitioned volume (perhaps an external USB drive or another harddisk) or do the initial setup with a tool like the GParted LiveCD to provide the space for another partition.

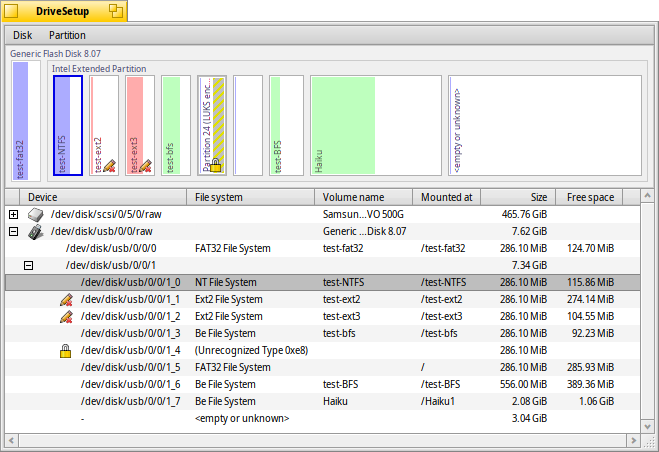

At the top is a graphical representation of all partitions inside the device chosen in the list below it. Besides a maximum of 4 primary partitions, each of those can contain a number of extended/logical partitions. You may have to expand such a list with the +/- widget that appears in that case in front of that device to see the details of every logical partition.

You can select a partition from the list and mount and unmount them with the commands in the Partition menu or by pressing ALT M or ALT U.

You can also completely delete a partition with Partition | Delete.
Which brings us to this:

Dealing with creating/deleting/initializing partitions is very dangerous business. Always check twice to be sure you're working with the right one and always keep an up-to-date backup of your data in case something goes wrong!

index Creating a new partition

If you plan to use the entire drive as one partition, e.g. a USB stick or a Compact Flash card, you can skip the creation of a partition and proceed right to Initializing.

When you found unformatted space on a drive, like the above <empty>, you can create a new partition in this space with Partition | Create...(ALT C).


You're prompted with this dialog that lets you adjust the partition size and type. Choose Be File System if you want to use the partition for an Haiku installation or if you want to use all the interesting Haiku features with it, like attributes and queries. Note, that other operating systems might not be able to access such a partition.

If you have created a primary partition instead of just another extended/logical partition within one, the above dialog also displays an Active partition checkbox. You'll have to check that, if you'll use that partition to boot a Haiku installation.

Before you can use, or even mount the newly created partition, it has to be initialized with a filesystem.

index Initializing a partition

Only unmounted partitions can be initialized by using the Partition | Initialize menu.


Here you set the name for the partition and it's blocksize. 2048 bytes per block are recommended, but you can choose larger or smaller sizes if you have these very specific needs.
Initializing will destroy all data on that partition!
